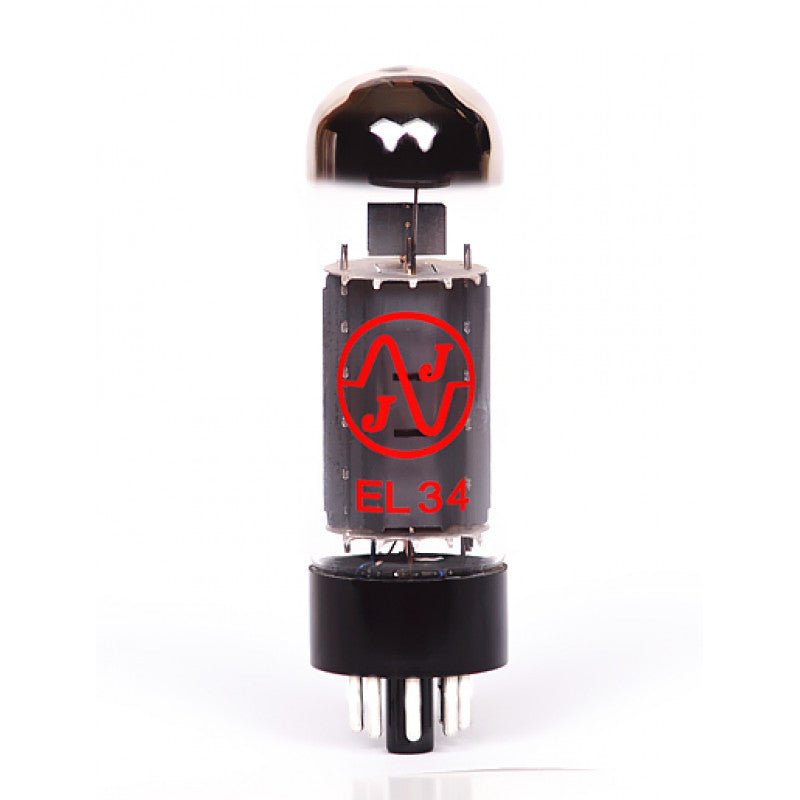

JJ Electronics Power-Amp Tube EL34 Amp Valve

Name: JJ Electronics Power-Amp Tube EL34 Amp Valve
Brand: JJ Electronic
SKU: JJE-EL34-2
Availability: OutOfStock

£80.00

Tax included Shipping calculated at checkout.

Tube configuration

Single tube Matched pair Quartet

Product variants

Delivery and Shipping

All instruments are passed through our workshop prior to shipping.

This includes a 25 point Q.C. check and setup to your spesifcation.

This means it can take anything up to 2 weeks to recieve your instrument from date of purchase.

All shipping is done via Royal Mail & Parcelforce. Tracking is provided once shipped.

Our Climate Commitment

We're a fully carbon neutral business!

We've planted over 14,000 saplings locally on Dartmoor! No overseas planting, just right on our doorstep.

We've planted a variety of native hardwoods.

Not only this but we also support Moor Trees and their ambition to rewild Dartmoor.

Finance Solutions

We can offer multiple options with very high acceptance rates with either of our partners; Klarna or Snap Finance.

Klarna

Pay in 30 days
Split into 3 monthly installments

Snap Finance

11 Month interest free
Up to 48 month intrest bearing

Description

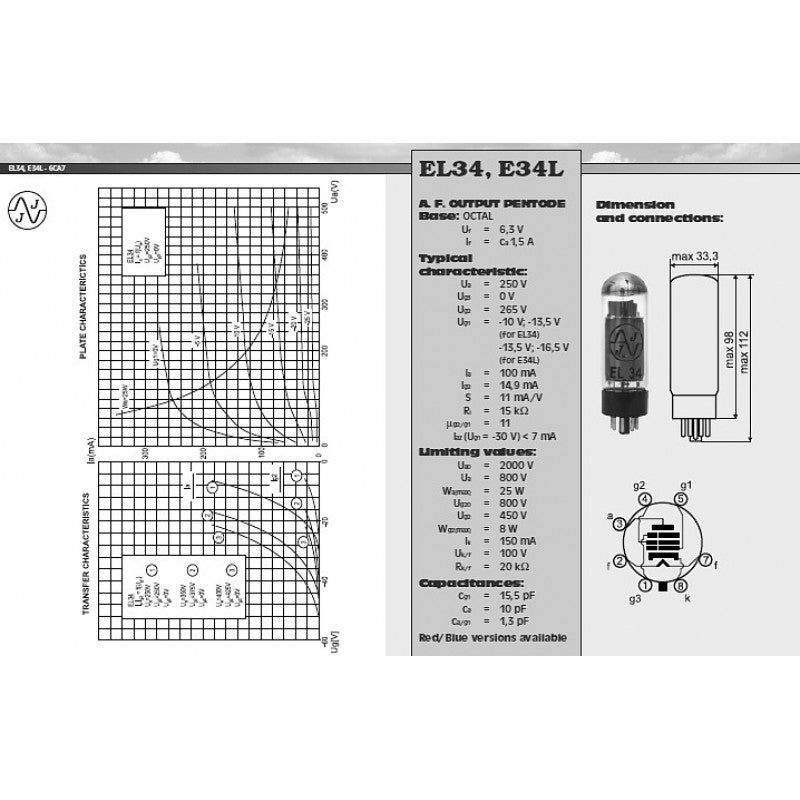

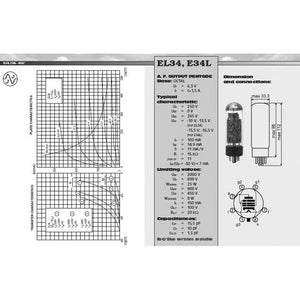

EL34 is an octal power tube with a maximum plate power of 25W. Very robust and reliable due to its internal construction.

Base: OCTAL
Uf = 6,3 V
If = ca 1,5 A

Typical characteristic:
Ua = 250 V
Ug3 = 0 V
Ug2 = 265 V
Ug1 =
-10 V; -13,5 V (for EL34)
-13,5 V; -16,5 V(for E34L)
Ia = 100 mA
Ig2 = 14,9 mA
S = 11 mA/V
Ri = 15 kΩ
μg2/g1 = 11
Iaz (Ug1 = -30 V) < 7 mA
