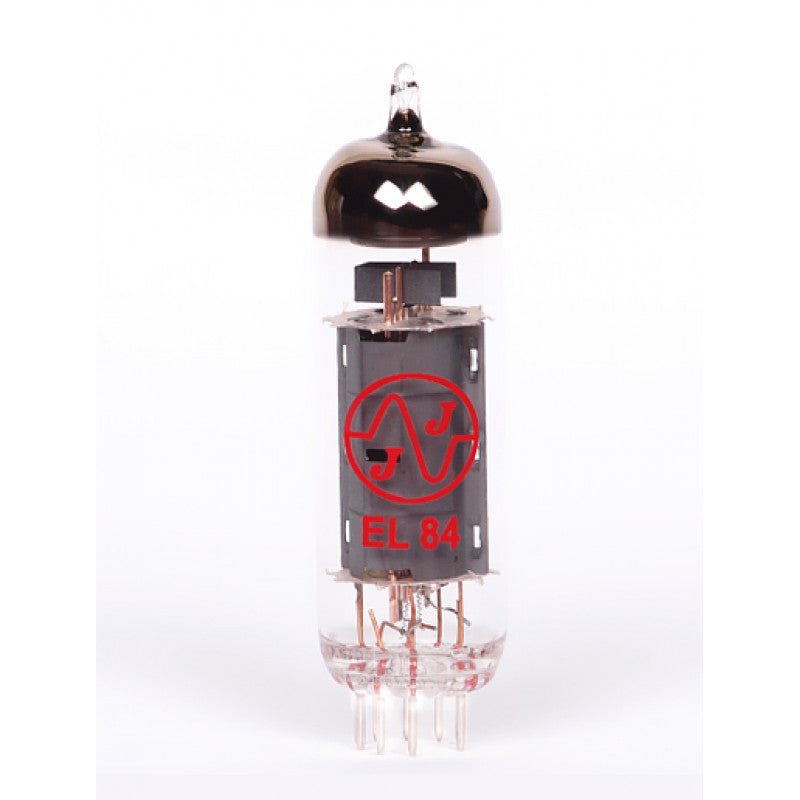

JJ Electronics Power-Amp Tube EL84 | 6BQ5 Amp Valve

£58.00

Tax included Shipping calculated at checkout.

Tube configuration

Single tube Matched pair Quartet

Product variants

Delivery and Shipping

All instruments are passed through our workshop prior to shipping.

This includes a 25 point Q.C. check and setup to your spesifcation.

This means it can take anything up to 2 weeks to recieve your instrument from date of purchase.

All shipping is done via Royal Mail & Parcelforce. Tracking is provided once shipped.

Our Climate Commitment

We're a fully carbon neutral business!

We've planted over 14,000 saplings locally on Dartmoor! No overseas planting, just right on our doorstep.

We've planted a variety of native hardwoods.

Not only this but we also support Moor Trees and their ambition to rewild Dartmoor.

Finance Solutions

We can offer multiple options with very high acceptance rates with either of our partners; Klarna or Snap Finance.

Klarna

Pay in 30 days
Split into 3 monthly installments

Snap Finance

11 Month interest free
Up to 48 month intrest bearing

Description

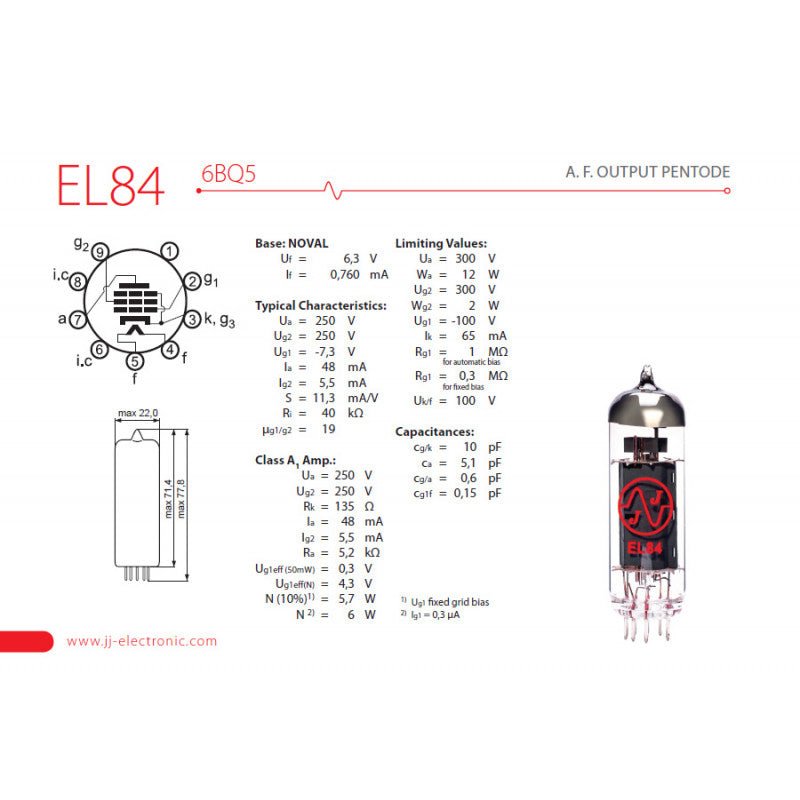

EL84 is an output pentode for use in guitar and Hi-Fi amplifiers. It has a noval base and maximum plate power of 12W.

Base: NOVAL
Uf = 6,3 V
If = 0,760 mA

Typical characteristic:
Ua = 250 V
Ug2 = 250 V
Ug1 = -7,3 V
Ia = 48 mA
Ig2 = 5,5 mA
S = 11,3 mA/V
Ri = 40 kΩ
μg1/g2 = 19
